JDM 2AZ-FE Engine Guide - Timing Covers and Fitment Groups
The short version: every JDM 2AZ-FE is the same 2.4L engine on the inside — which is not true of the U.S.-market version. What changes from one JDM unit to the next is the outside, and the part that actually decides whether an engine drops into your car is the timing cover, because the engine mount on the timing side of the block is cast into it.
At a glance
- Every JDM 2AZ-FE is the same engine on the inside. The U.S.-market version is not — its pistons and rings changed depending on the year.
- What decides whether an engine fits your car is the timing cover, because the timing-side engine mount is cast into it.
- That splits the 2AZ-FE into four fitment groups. Buy inside your group and the engine bolts straight in.
- Outside your group it still works — you move your own timing cover onto the replacement engine. Doing that does not disturb the engine’s timing.
All JDM 2AZ engines are the same internally
Every JDM 2AZ-FE is mechanically identical where it counts: the same 2.4L aluminum block, the same rotating assembly, the same pistons and rings, the same cylinder head and valvetrain, the same timing chain setup. It does not matter which vehicle a JDM unit came out of — the internals are consistent across all of them. One is not a stronger or weaker engine than another.
The U.S.-market 2AZ-FE is a different story. Domestic engines were not built the same way for the whole production run — depending on the model year, they came with different internals, including differences in the pistons and the piston rings. So with a used domestic engine, what you actually get inside the block depends on which year it was pulled from, and two engines wearing the same 2AZ-FE badge can be built differently.
That is worth knowing before you buy a used engine anywhere. With a JDM unit you are getting a known, consistent build every time. With a domestic core you are getting whatever that year happened to use.
It is also why the engine code alone tells you almost nothing. On a JDM engine it will not tell you whether the unit bolts into your car — that is the timing cover, below. On a domestic engine it will not even tell you what is inside it.
What differs on a JDM unit is the outside — and the timing cover matters most
So if the internals are the same across every JDM 2AZ-FE, what changes? The dress. Toyota built the same engine but fitted it out differently depending on the vehicle it went into. The external parts that can differ include:
- The timing cover, which carries the timing-side engine mount
- Intake manifold and throttle body
- Exhaust manifold
- Oil pan and dipstick location
- Alternator, A/C and power-steering bracketry
- Accessory pulley and belt routing
- Wiring harness and sensor locations
Most of those you simply move over from your own engine — they bolt on. The timing cover is the one that stops people, because on the 2AZ-FE the engine mount on the timing side of the engine is cast into the cover itself. It is not a separate bracket you can unbolt and swap. Change the vehicle, and the mount sits in a different place.
So when we group these engines by fitment, we are really grouping them by which timing cover they came with.
2AZ-FE fitment groups
Engines within the same group share the same timing-side mount, which means the engine bolts straight in with no cover swap.
| Group | Vehicles that share this timing cover |
|---|---|
| Group 1 |
Toyota Camry 2002–2009 Toyota Solara 2002–2008 Toyota Highlander 2001–2007 |
| Group 2 |
Toyota RAV4 2004–2005 Scion tC 2005–2010 |
| Group 3 |
Toyota RAV4 2006–2008 Toyota Matrix 2009–2013 Toyota Corolla 2009–2012 Pontiac Vibe 2009–2010 |
| Group 4 | Scion xB 2008–2015 |
Two things worth pointing out, because they catch people out constantly:
- The RAV4 is split. A 2004–2005 RAV4 and a 2006–2008 RAV4 do not use the same timing cover. Anyone advertising a single 2AZ-FE as fitting “RAV4 2004–2008” is combining two different groups.
- Camry engines are not universal. The Camry/Solara/Highlander cover is its own group. A Camry engine will not bolt into a Matrix or a tC as it sits.
- The Scion xB stands alone. It does not share a cover with the Matrix, the Corolla or the Vibe, even though the years overlap. An xB needs an xB engine, or a cover swap.
- Only the 2.4L Corolla takes this engine. Most 2009–2012 Corollas left the factory with the smaller 1.8L. Check the 5th digit of your VIN — it has to be an E.
What each group’s timing cover looks like
This is the fastest way to check yourself. Open your hood, look at the front of the engine behind the accessory belt, and compare it against the photos below. If the cover on your engine matches the one in your group, an engine from that group bolts straight in.

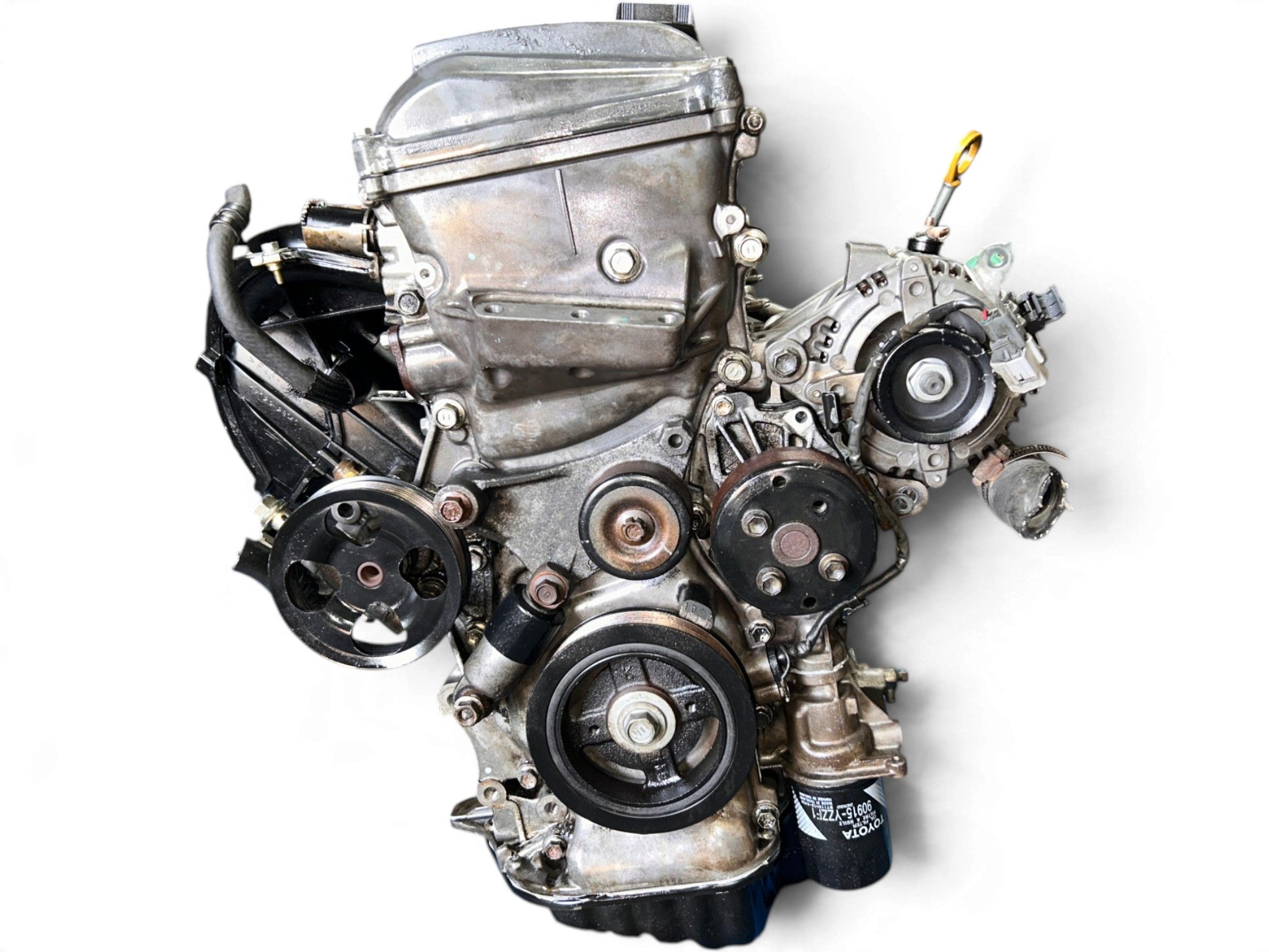

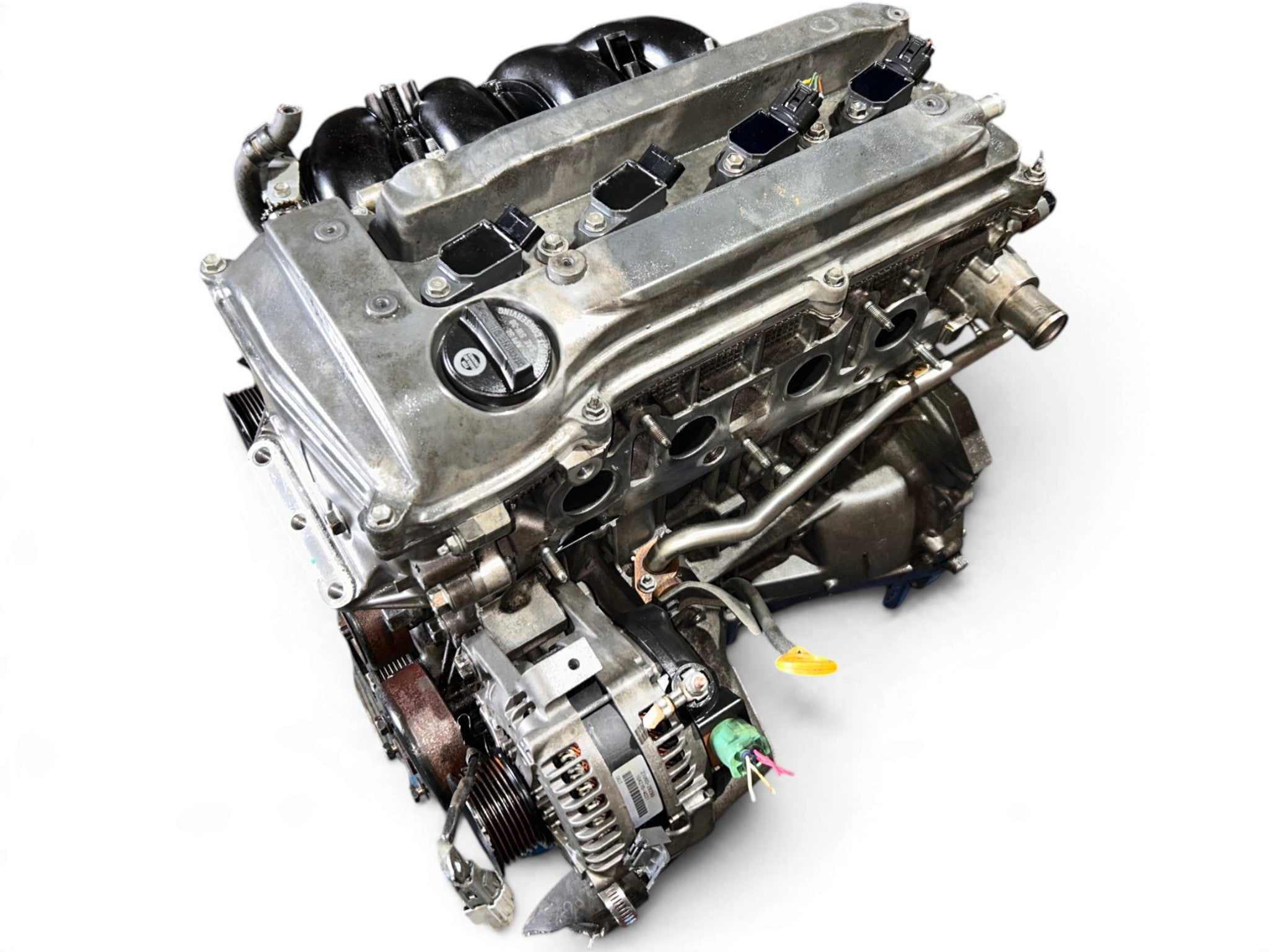

Group 1 — Camry, Solara, Highlander

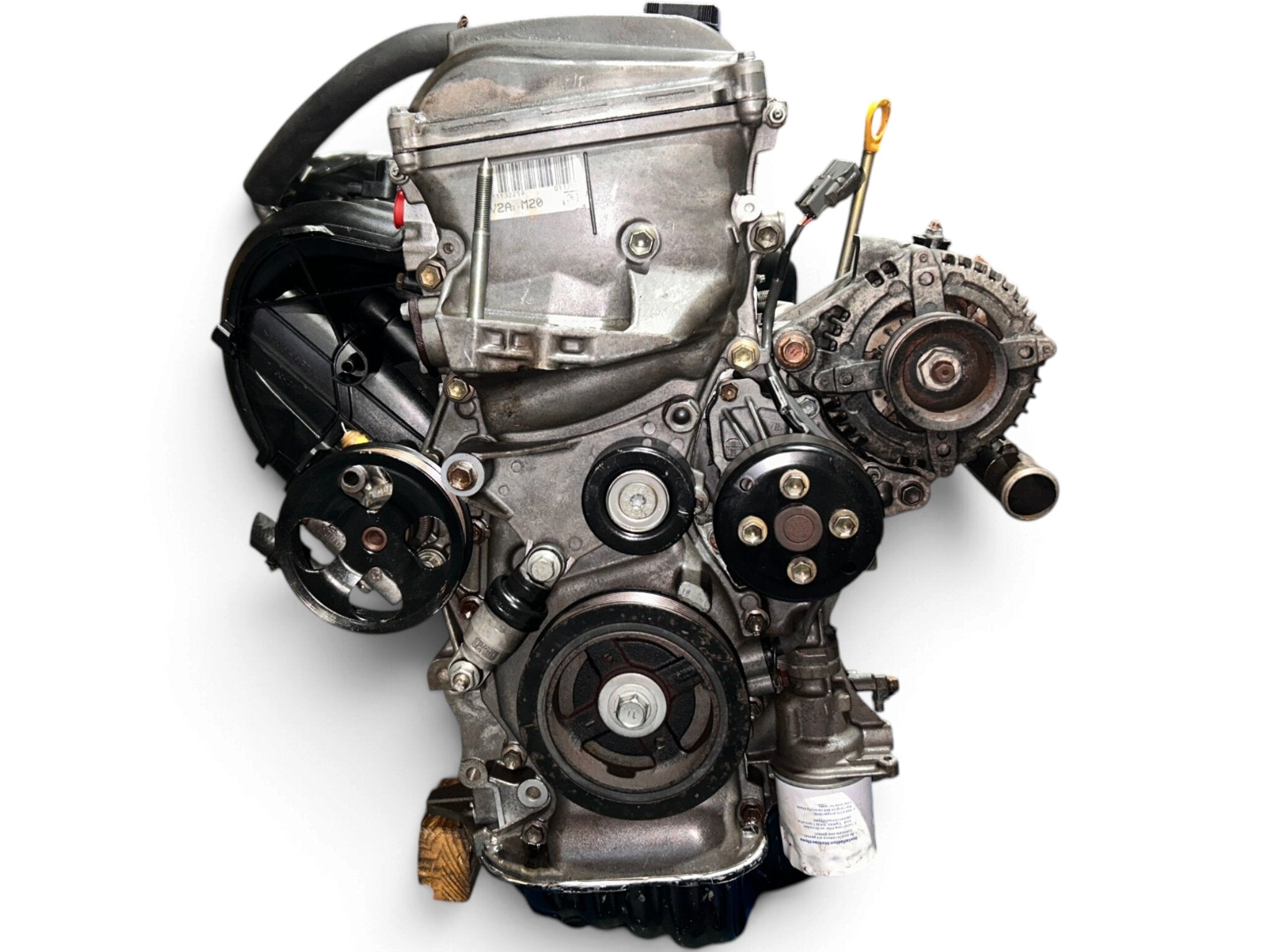

Group 2 — RAV4 2004–2005, Scion tC

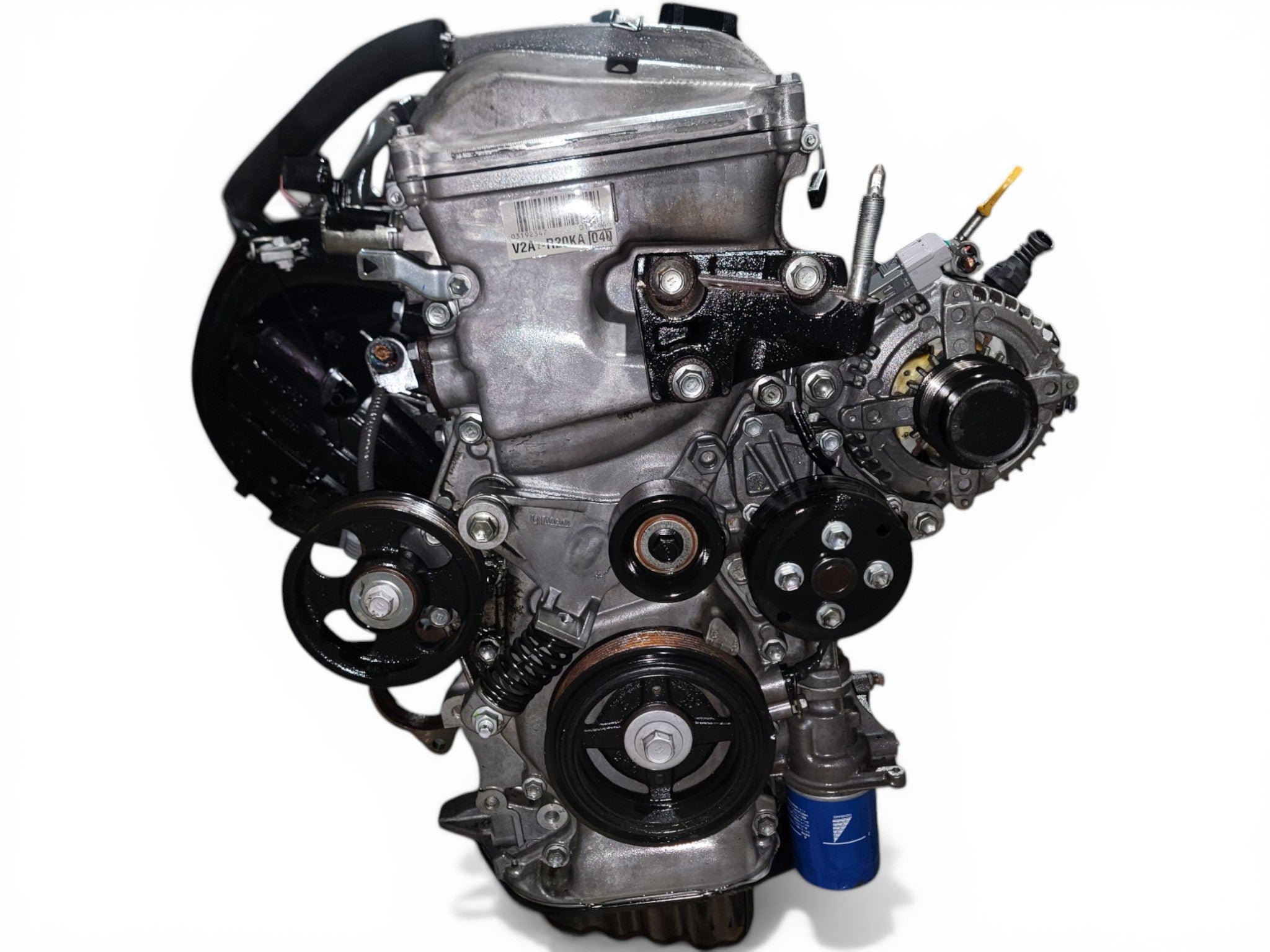

Group 3 — RAV4 2006–2008, Matrix, Corolla, Vibe

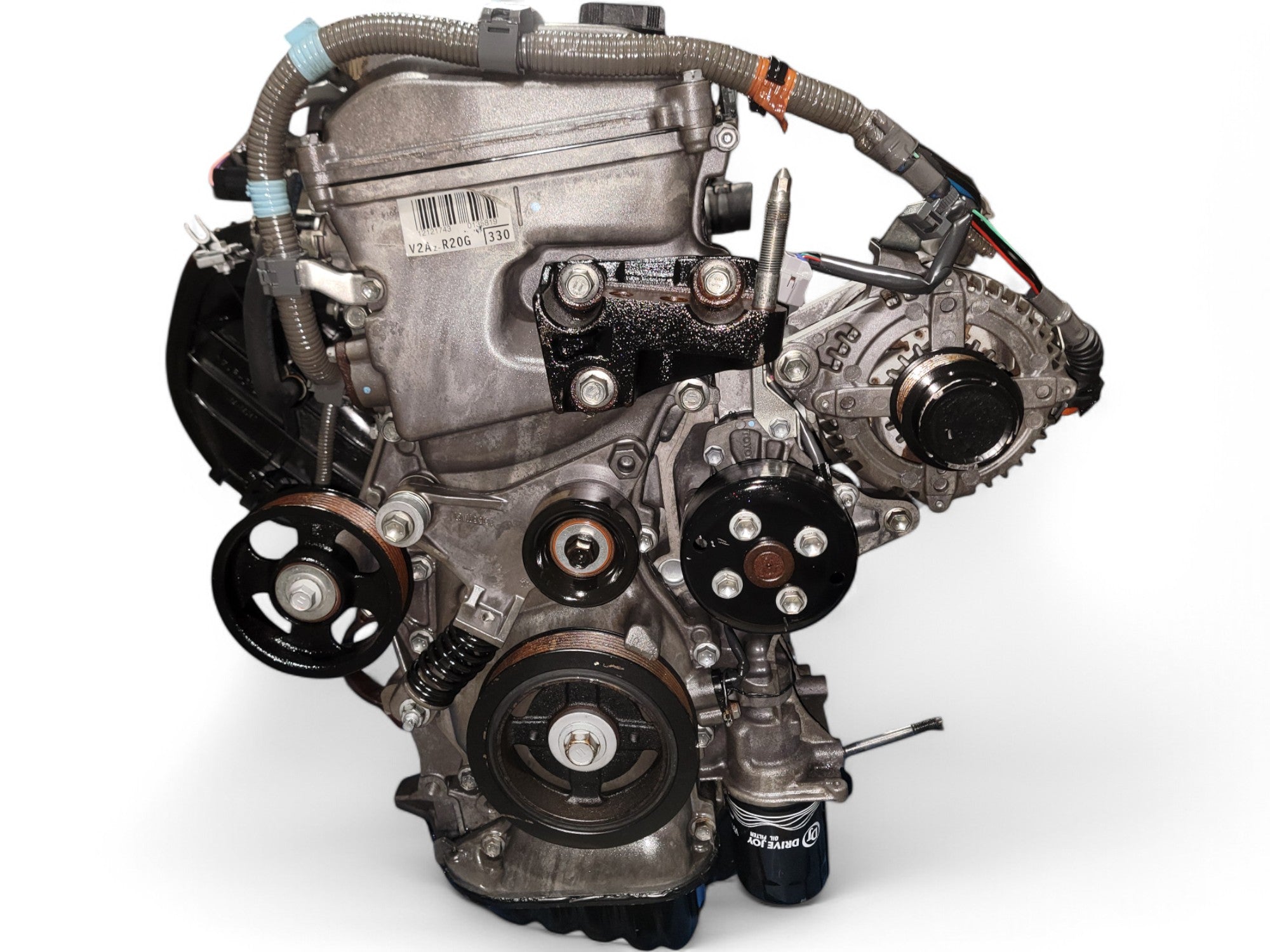

Group 4 — Scion xB
Still not sure which one you are looking at? Take a photo of the front of your engine and text it to us at (973) 969-5190 along with your VIN, and we will tell you which group you are in.
Can you still use an engine from a different group?
Yes — in most cases you can, and this is the part almost nobody explains.
Because the engines are identical internally, any 2AZ-FE will physically bolt into any 2AZ-FE chassis if you move your own timing cover over onto the replacement engine. You take the cover off your original engine, put it on the one you bought, and the mount is now in the right place for your car.
That means the groups above are not a hard wall. They are a no-extra-work distinction:
- Same group — bolt your accessories on and install it. No cover work.
- Different group — the engine will still work in your car, but you or your shop need to swap the timing cover over as part of the install.
Most customers would rather stay inside their own group, and we understand why: they want to transfer their external parts and put the engine in. If that is you, buy from your group. But if the engine you want is in a different group and your shop is comfortable with a cover swap, the engine is not off the table.
“Won’t pulling the timing cover throw off the timing?”
This is the single most common worry we hear, and it is the reason people walk away from an engine that would have worked fine for them.
Removing and reinstalling the timing cover does not disturb the engine’s timing. The cover is a cover. The chain, the sprockets and the tensioner stay where they are. Any competent shop treats this as a routine job, not an engine rebuild.
If your mechanic has done timing covers on these engines before, this will not be news to them. If they have not, it is a short conversation and a new cover gasket.
Before you buy: check the group, not the engine code
The engine code is the starting point, not the answer. Before you order:
- Find your vehicle in the table above and note its group.
- Buy an engine listed for your group if you want a straight install.
- If you are crossing groups on purpose, confirm your shop will swap your timing cover over.
- Check the individual listing for exactly which external parts are included — this varies by unit, so go by what that listing states rather than assuming.
Not sure which group you’re in? Call us first
Do not guess from a year range you found somewhere else. Call (973) 969-5190 with your VIN and we will confirm which 2AZ-FE group your vehicle takes, and whether the engine you are looking at drops straight in or needs your cover moved over. It takes a minute and it is the difference between a weekend install and a returned engine.
